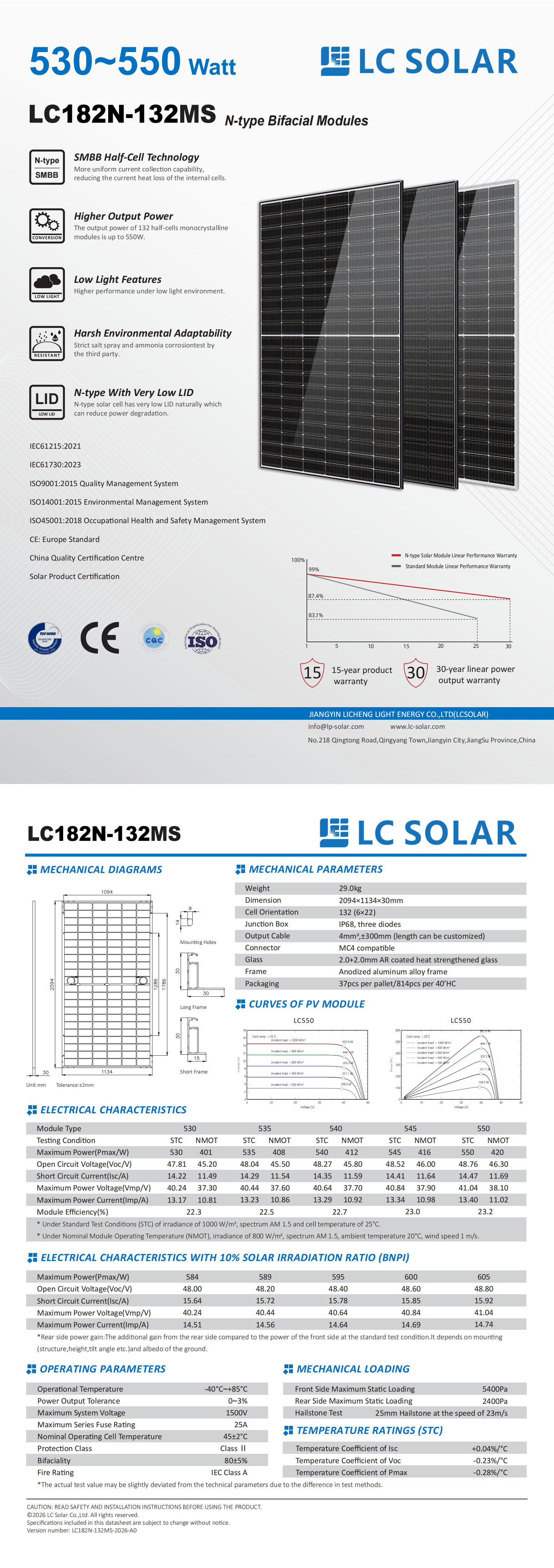

LC182N-132MS is a 182mm monocrystalline N-type bifacial module with 132 SMBB half-cells, available in 530W to 550W for distributed PV installations. Engineered with dual-glass construction, it delivers 23.2% peak efficiency and up to +15% rear-side gain under 10% albedo. Backed by a 15-year product warranty and 30-year linear output warranty, it is ideal for residential rooftops, commercial & industrial rooftops, and ground-mounted solar plants.
Built with N-type cells and SMBB half-cell design, the module achieves more uniform current collection, significantly reducing internal power loss. With a maximum efficiency of 23.2% and peak power up to 550W, it delivers higher energy output compared to conventional modules. N-type cells also feature extremely low Light-Induced Degradation (LID), minimizing power loss over time.
Optimized for low-light conditions, the module maintains high performance under weak irradiance. Its bifacial design captures reflected light from the rear side, delivering up to an additional 15% power gain under 10% albedo conditions, boosting overall energy yield throughout the day.
Passed third-party salt spray and ammonia corrosion tests, the module is built to withstand high humidity, coastal, and industrial environments. The durable aluminum frame and tempered glass also ensure resistance to wind, snow, and hail, making it suitable for diverse climates.
The module complies with IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001, CE, and CQC standards. It comes with a 15-year product warranty and a 30-year linear power output warranty, guaranteeing at least 87.4% of the initial power output after 30 years.
| Parameter | Details |
| Power Range (STC) | 530W-550W |
| Max Efficiency | 23.2% |
| Dimensions | 2094×1134×30mm |
| Weight | 29.0kg |
| Maximum System Voltage | 1500V |
| Front Static Load | 5400Pa |
| Rear Static Load | 2400Pa |
| Operating Temperature | -40℃~ +85℃ |
| Bifaciality | 80% + 5% |
| Connector | MC4 compatible |
| Warranty | 15-year product/30-year linear power output |
| Maximum Power (Pmax) | 530W / 535W / 540W / 545W / 550W（STC） |
|---|---|
| Maximum Power Voltage (Vmp) | 41.30V / 41.45V / 41.60V / 41.75V / 41.90V |
| Maximum Power Current (Imp) | 12.84A / 12.91A / 12.99A / 13.06A / 13.13A |
| Open-Circuit Voltage (Voc) | 49.30V / 49.45V / 49.60V / 49.75V / 49.90V |
| Short-Circuit Current (Isc) | 13.78A / 13.86A / 13.94A / 14.02A / 14.10A |
| Module Efficiency | 21.1% – 23.2% |
| Power Tolerance | 0 ~ +3% |
| Temperature Coefficient (Pmax) | -0.30% / °C |
| Temperature Coefficient (Voc) | -0.25% / °C |
| Temperature Coefficient (Isc) | +0.045% / °C |
| NOCT | 45 ± 2°C |
| Cell Type | Monocrystalline N-type, 182mm × 91mm |
|---|---|
| Cell Arrangement | 132 cells (6 × 11 + 6 × 11) half-cell |
| Front / Rear Glass | 2.0mm tempered low-iron glass + 2.0mm tempered glass (dual-glass) |
| Frame | Anodized aluminum alloy, 30mm, black / silver optional |
| Junction Box | IP68, 3 bypass diodes |
| Cable | 4 mm², length 300mm(+) / 400mm(-) (customizable) |
| Connector | MC4 compatible / MC4-Evo2 optional |
| Dimensions (L × W × H) | 2094 × 1134 × 30 mm (tolerance ±2mm) |
| Weight | 29.0 kg ± 3% |
| Product Certification | IEC 61215, IEC 61730, UL 1703 (optional), TUV Rheinland |
|---|---|
| System / Quality Standard | ISO 9001, ISO 14001, ISO 45001 |
| Regional / Market | CE (EU), CQC (China), MCS (UK optional), CEC (AU optional), INMETRO (BR optional) |
| Environmental Tests | Salt mist (IEC 61701), Ammonia corrosion (IEC 62716), PID (IEC 62804) |
| Fire Performance | Class A (UL 790) |
| Recyclability | PV Cycle member (take-back program available) |
Ideal for residential rooftops, commercial & industrial distributed systems, and utility-scale ground-mounted power plants, the LC182N-132MS series offers a cost-effective, high-performance solution to maximize solar energy production across various scenarios.
1. How does N-type TOPCon compare with conventional PERC modules?
N-type TOPCon cells eliminate boron-oxygen Light-Induced Degradation (LID) and reduce LeTID, which traditional PERC modules still suffer from. Combined with 16-busbar SMBB and dual-glass structure, the LC182N delivers ~2.0–2.5% higher energy yield per installed watt, with a degradation curve of ≤ 1.0% first-year and ≤ 0.40%/year thereafter — keeping ≥ 87.4% of nameplate output at year 30, roughly 1.5 percentage points higher than comparable PERC modules.
2. What real-world bifacial gain can I expect?
LC182N-132MS is rated 80% ± 5% bifaciality. Field-measured additional yield ranges from +8% to +15% depending on installation height, ground albedo and tilt: • Concrete / white roof: +10–12% • Sand / gravel ground: +8–10% • Snow-covered ground: +12–15% Detailed bifacial modeling is available on request via the Project Consultation form.
3. Is this module suitable for coastal or high-humidity regions?
Yes. LC182N is certified to IEC 61701 salt-mist severity level 6 and IEC 62716 ammonia corrosion. Combined with IP68 junction box, dual-glass encapsulation and anodized aluminum frame, it is approved for coastal PV plants, agricultural PV (ammonia from livestock) and humid tropical climates.
4. Which inverters are compatible with the LC182N-132MS?
The module is electrically compatible with mainstream 1,500V string inverters (Huawei, Sungrow, Sineng, Kstar, Growatt, Solis, Fronius, SMA, etc.) and module-level electronics (Enphase IQ8, APsystems, Hoymiles). Maximum system voltage 1,500 V DC, max series fuse rating 25 A. We can provide a matching string-size sheet on request — share your inverter model and array layout, we respond within 24h.
