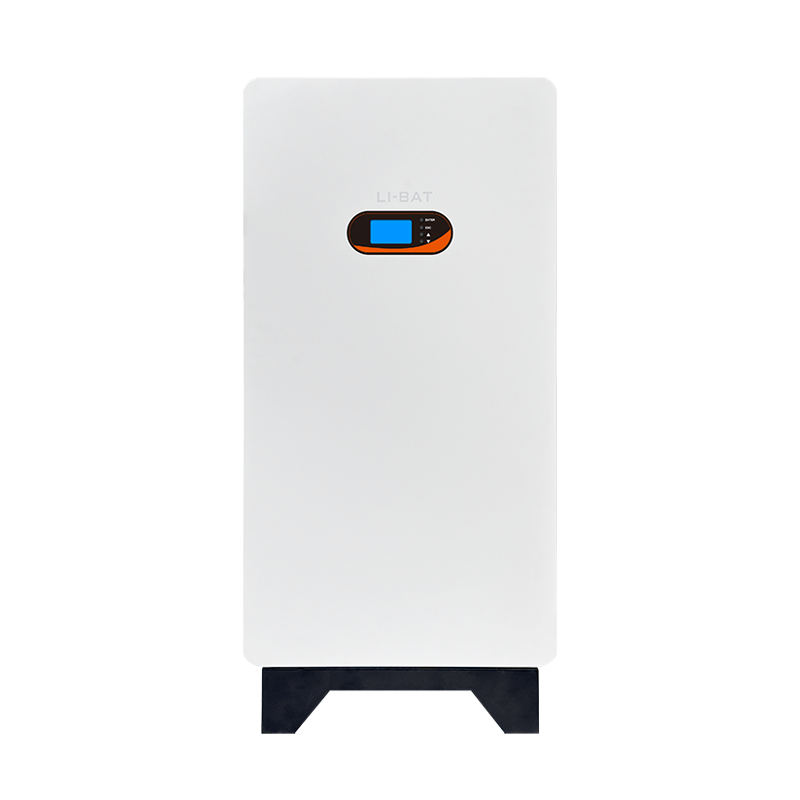

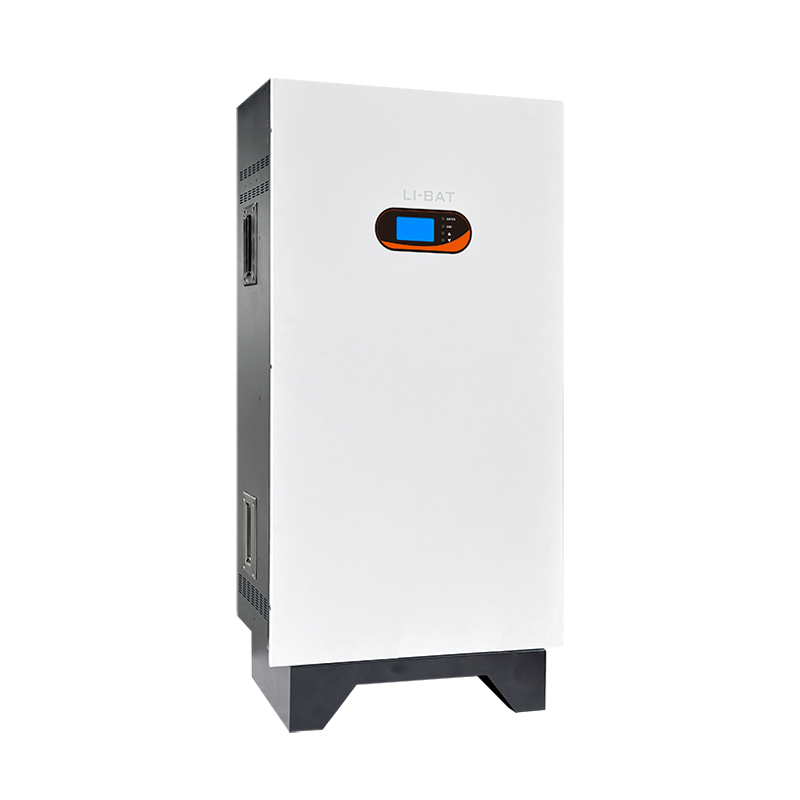

The GBP-H Series Vertical Type Lifepo4 Batteries are advanced energy storage solutions designed for small commercial and family energy storage systems. With a sleek vertical stand design, these batteries combine aesthetic appeal with practical functionality, featuring comprehensive protection mechanisms and seamless inverter compatibility. Crafted from environmentally friendly materials without heavy metals, they offer a sustainable and safe energy storage option for modern users.
Equipped with multi-level battery protection strategies and fault isolation measures, the batteries effectively prevent overcharging, over-discharging, and short-circuiting. The Lifepo4 battery chemistry ensures excellent thermal stability, reducing the risk of fire or explosion even in extreme conditions.
The vertical stand structure allows easy movement and installation, while hidden wiring enhances the overall appearance. The UEC Standard LCD display provides real-time battery status monitoring, enabling users to check power levels and system performance at a glance.
Incorporating mainstream market inverter protocols, the batteries support direct communication with most inverters, eliminating the need for additional adapters. Users can select the appropriate inverter communication protocol directly via the LCD screen, simplifying system configuration.
With a standard cycle life exceeding 5000 times, the batteries offer long-term reliable service, reducing the frequency of replacement and lowering overall energy storage costs. The natural air cooling system ensures stable performance even during prolonged use.
 Stand design, safe and stable. |
 Hidden wiring, beautiful design. |
 Standard LCD display screen, to understand battery status in real time, and directly select the inverter communication protocol on the screen. |
 Environmentally friendly and pollution-free materials, no heavy metals, green and environmentally friendly. |
 Standard cycle life over 5,000 times. |
Product Parameter
Model | GBP48-280H | GBP48-300H | GBP51.2-280H | GBP51.2-300H |
Nominal Volt (V) | 48 | 51.2 | ||
Cell Specification (Ah) | 280 | 314 | 280 | 314 |
Nominal Capacity (Ah) | 280 | 314 | 280 | 314 |
Working Volt Range | 42~54.75 | 44.8~58.4 | ||
Recommended Charging Volt (V) | 51.75 | 55.2 | ||
Recommended Discharging Cut-off Volt (V) | 45 | 48 | ||
Standard Charging Current (A) | 100 | |||
Maximum Continuous Charging Current (A) | 150 | |||
Standard Discharging Current (A) | 100 | |||
Maximum Discharging Current (A) | 150 | |||
Proper Temperature (℃) | -30~60 (Recommended 10~35) | |||
Allowable Humidity Range (%RH) | 85 | |||
Storage Temperature (℃) | -20~65 (Recommended 10~35) | |||
Protection Level | IP20 | |||
Cooling Method | Natural air cooling | |||
Maximum Size (D*W*H) mm | 246*480*990 | |||
Net Weight (kg) | 138.5 | 142.5 | 141 | 145 |
Note: The above data is for reference and subject to change without prior notice. Communicate with engineers for special customization requirements.
Ideal for residential users to store surplus energy generated by rooftop solar panels, ensuring a continuous power supply during grid outages and reducing reliance on grid electricity.
Suitable for small businesses such as convenience stores, offices, and clinics, helping them manage peak electricity demand, reduce energy costs, and enhance business continuity.
Perfect for remote areas without access to the main power grid, such as mountain cabins, rural workshops, and outdoor facilities, providing a stable and sustainable energy supply.
The batteries feature a vertical stand design with compact dimensions, measuring 246480990mm, which saves installation space and allows flexible placement. The net weight ranges from 138.5kg to 145kg, ensuring stability during operation.
Protection level: IP20 for effective dust protection
LCD display: Real-time monitoring of battery voltage, current, and state of charge
Protection mechanisms: Overcharge, over-discharge, short-circuit, and over-temperature protection
Yes, the batteries are made from pollution-free materials without heavy metals, complying with environmental protection standards and reducing environmental impact.
The built-in UEC Standard LCD display shows real-time battery status, including power level, voltage, and system errors, allowing easy monitoring and management.
The batteries support mainstream inverter protocols and can directly communicate with most inverters. Users can select the appropriate protocol via the LCD screen for seamless compatibility.
The vertical stand design enables easy movement and installation, saves floor space, and allows flexible placement in different indoor areas such as basements and utility rooms.
