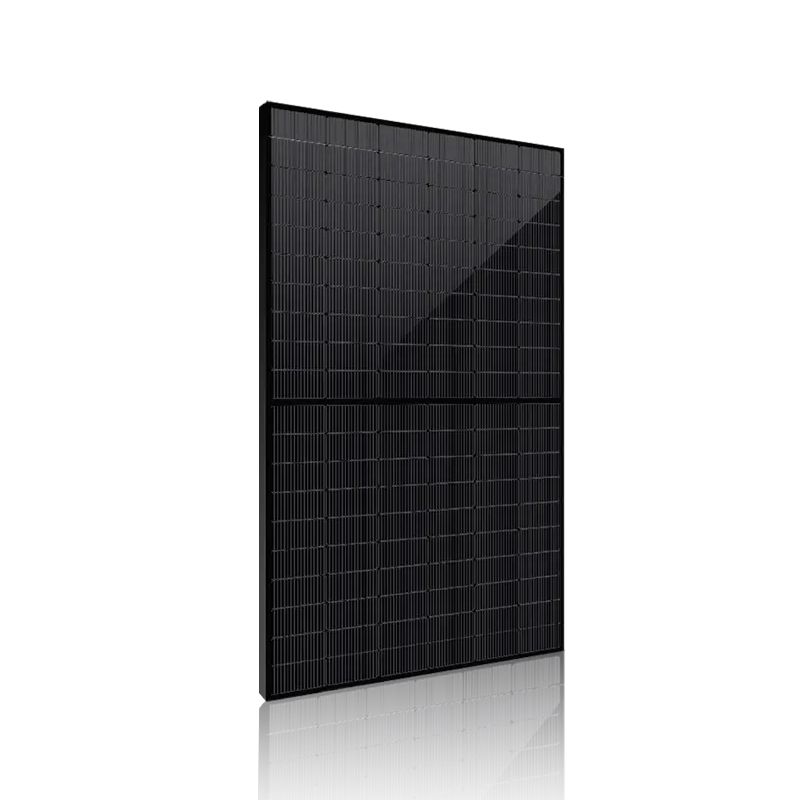

The Full Black Solar Module 182N-120-460-500W is a high-performance photovoltaic solution designed for both residential and commercial applications. Crafted with advanced N-type mono-crystalline cells, this module features a sleek all-black appearance that seamlessly blends with various roof styles, enhancing aesthetic appeal while delivering reliable power generation. Engineered to operate efficiently under standard test conditions, it adapts well to different environmental settings, making it a versatile choice for solar energy projects.
The full-black design eliminates visual distractions, matching dark roof materials and modern architectural styles. It stands out as a discreet yet powerful energy solution, ideal for properties where appearance matters as much as energy output.
Equipped with high-efficiency N-type mono-crystalline cells, the module maximizes sunlight absorption. Its rear side power gain capability further boosts total energy production, ensuring optimal performance even in low-light conditions.
Built with ultra-clear embossed semi-tempered glass and black mesh semi-tempered glass, the module offers strong resistance to environmental stressors. It maintains structural integrity against harsh weather, ensuring long-term stable operation and consistent power delivery.
Perfect for homeowners seeking to upgrade to solar energy without compromising roof aesthetics. The all-black design complements asphalt, tile, and metal roofs, integrating smoothly into residential landscapes.
Suitable for small offices, retail stores, and local businesses. Its efficient power generation helps reduce electricity costs, while the sleek design aligns with commercial properties’ professional image.
Ideal for projects where design and functionality must coexist, such as modern residential complexes or eco-friendly commercial developments. It supports sustainable building goals while enhancing the overall visual appeal of the structure.
Featuring a compact and lightweight structure, the module is easy to handle and install. The symmetrical output cables and MC4-compatible IP68 connectors ensure secure and convenient wiring, simplifying the installation process.
Constructed with high-quality N-type mono-crystalline cells, the module guarantees efficient energy conversion. The combination of ultra-clear and black mesh semi-tempered glass enhances durability and light absorption, contributing to its long service life.
With a maximum system voltage of DC 1500V and a high maximum series fuse rating, the module meets international safety standards. It incorporates comprehensive protection measures to prevent overheating and electrical faults, ensuring safe operation for both users and the system.
The full-black design enhances aesthetic compatibility with various roof types, making it a preferred choice for residential and commercial properties where visual harmony is important. It also does not sacrifice performance, maintaining high energy generation efficiency.
Yes, the module is engineered to withstand a wide range of temperatures. Its robust construction and high-quality materials ensure stable performance in both cold and hot environments, adapting to different regional weather conditions.
While the module features user-friendly design elements like symmetrical cables and compatible connectors, professional installation is recommended. This ensures proper mounting, wiring, and system integration, maximizing performance and safety.
Electrical Parameters At Standard Test Conditions
| STC: AM=1.5, 1000W/m², Cells Temperature25℃ | ||||||||
Typical Type | 455W | 460W | 465W | 470W | 475W | 480W | 485W | 490W |
Max Power (Pmax) | 455 | 460 | 465 | 470 | 475 | 480 | 485 | 490 |
Max Power Voltage (Vmp) | 34.76 | 34.88 | 34.99 | 35.11 | 35.24 | 35.38 | 35.52 | 35.66 |
Max Power Current (Lmp) | 13.09 | 13.19 | 13.29 | 13.39 | 13.48 | 13.57 | 13.66 | 13.75 |
Open Circuit Voltage (Voc) | 42.1 | 42.24 | 42.38 | 42.52 | 42.66 | 42.8 | 13.66 | 13.75 |
Short Circuit Current (Lsc) | 13.83 | 13.94 | 14.03 | 14.12 | 14.2 | 14.29 | 42.94 | 14.47 |
Module Efficiency (%) | 21.01 | 21.24 | 21.47 | 21.70 | 21.93 | 22.16 | 14.38 | 22.62 |
Max System Voltage | DC 1500V (TÜV, UL) | |||||||
Maximum Series Fuse Rating | 30A | |||||||
Electrical Parameters At NMOT Test Conditions
| Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s | ||||||||
| Typical Type | 455W | 460W | 465W | 470W | 475W | 480W | 485W | 490W |
| Max Power (Pmax) | 342 | 346 | 350 | 350 | 358 | 362 | 363 | 366 |
| Max Power Voltage (Vmp) | 32.6 | 32.7 | 32.9 | 33 | 33.2 | 33.3 | 33.2 | 33.3 |
| Max Power Current (Imp) | 10.48 | 10.56 | 10.63 | 10.71 | 10.77 | 10.86 | 10.92 | 11 |
| Open Circuit Voltage (Voc) | 39.6 | 39.8 | 39.9 | 40.1 | 40.2 | 40.4 | 40.2 | 40.3 |
| Short Circuit Current (Isc) | 11.15 | 11.24 | 11.31 | 11.38 | 11.44 | 11.52 | 11.59 | 11.66 |
| Electrical Characteristics With 15% Rear Side Power Gain | ||||||||
| Front Power Pmax/W | 455W | 460W | 465W | 470W | 475W | 480W | 485W | 490W |
| Total Power Pmax/W | 523.25 | 529 | 534.75 | 540.5 | 546.25 | 552 | 557.75 | 563.5 |
| Vmp/V (Total) | 34.76 | 34.88 | 34.99 | 35.11 | 35.24 | 35.38 | 35.25 | 35.66 |
| Imp/A (Total) | 15.05 | 15.17 | 15.28 | 15.39 | 15.5 | 15.6 | 15.7 | 15.8 |
| Voc/V (Total) | 42.1 | 42.24 | 42.38 | 42.52 | 42.66 | 42.8 | 42.94 | 43.06 |
| Isc/A (Total) | 15.9 | 16.03 | 16.13 | 16.24 | 16.33 | 16.43 | 16.54 | 16.64 |
Mechanical Data
Dimensions | 1910x1134x35mm |
Weight | 26kg |
Glass | (F) 2.0mm ultra clear embossed semi-tempered coated glass (B) 2.0mm black mesh semi-tempered glass |
Output Cables | 4mm², symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell Type | N type Mono-Crystalline, 182x91mm |
Number Of Cells | 120cells (Half-Cell) |
