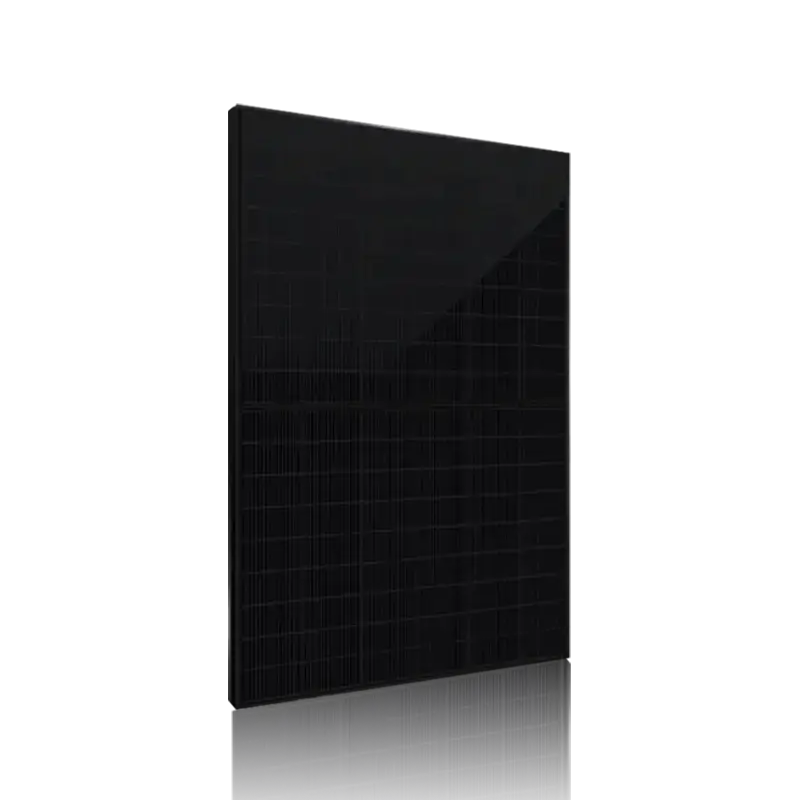

The Full Black Solar Module 182N-108-410-440W is a high-performance photovoltaic product engineered for seamless integration with modern architectural designs. Crafted with premium N-type Mono-Crystalline cells, this module features a sleek all-black appearance that blends effortlessly with residential and commercial rooftops. It adopts advanced half-cell technology to enhance energy generation efficiency while minimizing power loss, making it an ideal choice for users seeking both aesthetic appeal and reliable performance.
The all-black design of the module eliminates visual ness, matching various roof styles and enhancing the overall architectural beauty of buildings. Unlike traditional solar modules, its uniform black surface ensures it becomes a natural part of the structure rather than an obtrusive addition.
Equipped with N-type Mono-Crystalline cells and half-cell configuration, the module delivers stable power output even in low-light conditions. The 15% rear side power gain feature further boosts total energy production, maximizing the utilization of available sunlight from all angles.
Built with high-quality materials, including ultra-clear embossed semi-tempered coated glass and black mesh semi-tempered glass, the module offers excellent resistance to harsh environmental factors. The IP68 connectors ensure reliable performance in humid, dusty, or rainy conditions, extending the product’s service life.
With a maximum system voltage of DC 1500V (certified by TÜV and UL), the module is compatible with most residential and commercial solar energy systems. Its standardized design allows easy integration with existing inverters and mounting structures, reducing installation complexity.
Ideal for single-family homes and townhouses, the full black appearance complements residential architecture while providing sustainable energy to power household appliances and reduce electricity bills.
Suitable for shopping malls, office buildings, and hotels, the module helps commercial entities achieve energy savings and carbon reduction goals without compromising the building’s aesthetic image.
A perfect fit for eco-friendly building developments that prioritize both energy efficiency and design harmony. It supports green building certification by contributing to renewable energy utilization targets.
The module features a compact dimensions layout, with a lightweight structure that simplifies transportation and installation. The symmetrical 4mm² output cables ensure stable power transmission and easy connection.
Front glass: 2.0mm ultra-clear embossed semi-tempered coated glass for high light transmittance
Back glass: 2.0mm black mesh semi-tempered glass for enhanced durability and aesthetics
Connectors: MC4 compatible IP68 for reliable waterproof and dustproof performance
Adopts 108 pieces of half-cell N-type Mono-Crystalline cells (182x91mm), arranged to minimize current loss and improve overall module efficiency.
The full black design enhances architectural compatibility, making the module suitable for installations where appearance is a key consideration. It also reduces light reflection, improving light absorption in certain environments.
Yes, the module is designed with standard specifications and is compatible with most inverters and mounting systems, allowing easy integration into existing solar energy setups.
Absolutely, the module’s robust glass construction and IP68 connectors ensure it can withstand rain, dust, and temperature fluctuations, making it suitable for various climate zones.
No, the rear side power gain is a built-in feature that automatically takes effect when the module is installed, requiring no additional equipment or complex setup.
Electrical Parameters At Standard Test Conditions
| STC: AM=1.5, 1000W/m², Cells Temperature 25℃ | |||||||
Typical Type | 410W | 415W | 420W | 425W | 430W | 435W | 440W |
Max Power (Pmax) | 410 | 415 | 420 | 425 | 430 | 435 | 440 |
Max Power Voltage (Vmp) | 31.25 | 31.37 | 31.49 | 31.64 | 31.79 | 31.94 | 32.09 |
Max Power Current (Lmp) | 13.12 | 13.23 | 13.34 | 13.44 | 13.53 | 13.62 | 13.72 |
Open Circuit Voltage (Voc) | 37.94 | 38.04 | 38.13 | 38.24 | 38.34 | 38.43 | 38.53 |
Short Circuit Current (Lsc) | 13.85 | 13.96 | 14.07 | 14.16 | 14.25 | 14.34 | 14.43 |
Module Efficiency (%) | 21.00 | 21.25 | 21.51 | 21.76 | 22.02 | 22.28 | 22.53 |
Max System Voltage | DC 1500V (TÜV, UL) | ||||||
Maximum Series Fuse Rating | 30A | ||||||
Electrical Parameters At NMOT Test Conditions
| Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s | |||||||
| Typical Type | 410W | 415W | 420W | 425W | 430W | 435W | 440W |
| Max Power (Pmax) | 308 | 312 | 316 | 320 | 324 | 325 | 329 |
| Max Power Voltage (Vmp) | 29.4 | 29.5 | 29.6 | 29.7 | 29.9 | 29.8 | 29.9 |
| Max Power Current (Imp) | 10.49 | 10.58 | 10.67 | 10.75 | 10.84 | 10.91 | 11 |
| Open Circuit Voltage (Voc) | 35.7 | 35.8 | 35.9 | 36 | 36.1 | 36 | 36.1 |
| Short Circuit Current (Isc) | 11.16 | 11.25 | 11.34 | 11.41 | 11.48 | 11.56 | 11.63 |
| Electrical Characteristics With 15% Rear Side Power Gain | |||||||
| Front Power Pmax/W | 410W | 415W | 420W | 425W | 430W | 435W | 440W |
| Total Power Pmax/W | 471.5 | 477.25 | 483 | 488.75 | 495.5 | 500.25 | 506 |
| Vmp/V (Total) | 31.25 | 31.37 | 31.49 | 31.64 | 31.79 | 31.94 | 32.09 |
| Imp/A (Total) | 15.09 | 15.21 | 15.34 | 15.45 | 15.56 | 15.66 | 15.77 |
| Voc/V (Total) | 37.94 | 38.04 | 38.13 | 38.24 | 38.34 | 38.43 | 38.53 |
| Isc/A (Total) | 15.93 | 16.03 | 16.18 | 16.28 | 16.39 | 16.49 | 16.59 |
Mechanical Data
Dimensions | 1722x1134x30mm |
Weight | 23.3kg |
Glass | (F) 2.0mm ultra clear embossed semi-tempered coated glass (B) 2.0mm black mesh semi-tempered glass |
Output Cables | 4mm², symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell Type | N type Mono-Crystalline, 182x91mm |
Number Of Cells | 108cells (Half-Cell) |
