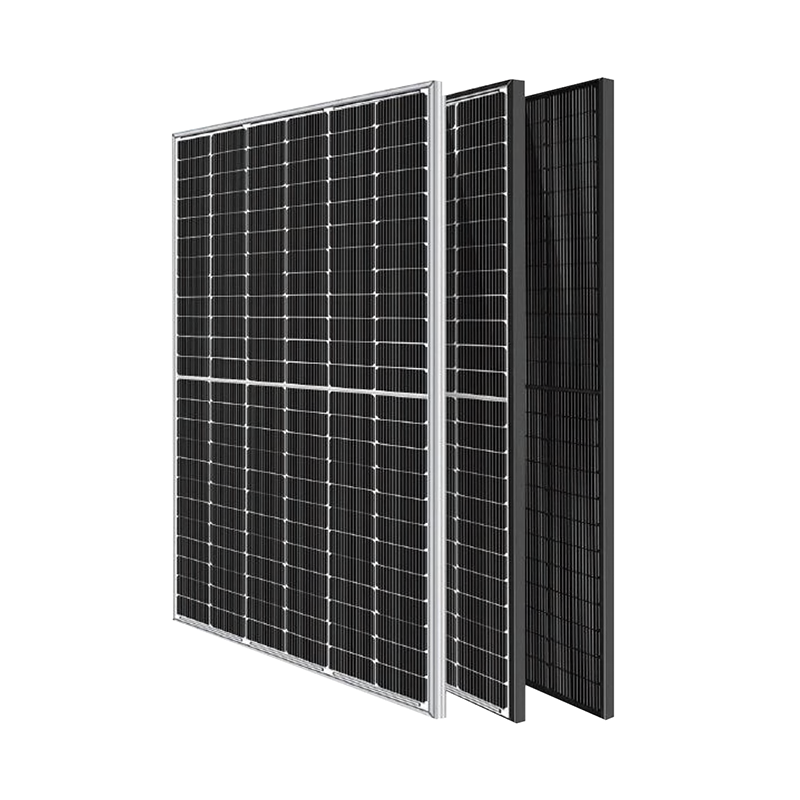

The Monocrystalline Silicon Mono 72 Cell module is a high-performance solar solution engineered for efficient energy generation. Crafted with advanced N-Type TOPCon technology, this module integrates premium monocrystalline silicon cells to deliver reliable power output across diverse environments. It’s designed to meet the demands of large-scale solar installations and residential projects seeking long-term efficiency and durability, making it a versatile choice for both commercial and domestic energy needs.
Equipped with innovative N-Type MBB Cell and optimized circuit design, the module enhances energy production significantly. Its low light performance ensures consistent power output even in dim conditions, while PID Protection minimizes performance attenuation, maintaining stable efficiency over time.
Undergoing strict salt spray and ammonia corrosion tests, the module excels in harsh environments. It withstands extreme weather with excellent wind load and snow load resistance, supported by a durable aluminum alloy frame that ensures structural integrity in challenging climates.
Compliant with international standards including IEC61215-2:2016 and IEC61730-2:2016, the module holds multiple management system certifications. These credentials validate its quality, safety, and performance, giving users confidence in its long-term operational reliability.

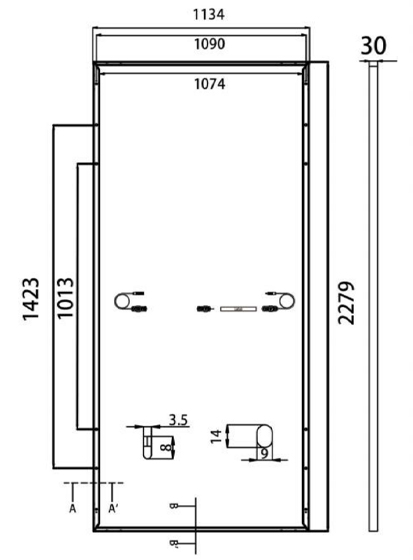

Mechanical Diagrams
 |  |  |
Mechanical Diagrams | Frame Cross Section A-A | Frame Cross Section B-B |
Specifications
Weight | 27kg |
Dimensions | 2279mm*1134mm*30mm |
Cell Dimensions | 182*182mm |
Cell Amount | 72*2 pcs |
Maximum System Voltage | 1500V |
Junction Box | IP68 |
Front Glass | 3.2mm, AntiReflection Coating, High Transmission, Low Iron, Tempered Glass |
Frame | Aluminum Alloy |
Cable | 4mm², N 1400mm/P 1400mm for Horizontal installation 4mm2, N 300mm/P 300mm for Vertical installation |
Connector | MC4 compatible |
Electrical Parameters At Stc
Power | 565W | 570W | 575W | 580W | 585W | 590W |
Open Circuit Voltage | 51.12V | 51.27V | 51.42V | 51.57V | 51.72V | 51.87V |
Short Circuit Current | 13.99A | 14.05A | 14.11A | 14.18A | 14.24A | 14.3A |
Maximun Power Voltage | 42.04V | 42.19V | 42.34V | 42.49V | 42.64V | 42.79V |
Maximum Power Current | 13.44A | 13.51A | 13.58A | 13.65A | 13.72A | 13.79A |
Module Eiciency | 21.86% | 22.06% | 22.25% | 22.44% | 22.64% | 22.82% |
Under Standard Test Conditions(STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25℃.
Electrical Parameters At Nmot
Power | 425W | 429W | 433W | 437W | 440W | 444W |
Open Circuit Voltage | 48.54V | 48.69V | 48.84V | 48.99V | 49.14V | 49.29V |
Short Circuit Current | 11.28A | 11.32A | 11.35A | 11.40A | 11.42A | 11.46A |
Maximun Power Voltage | 39.21V | 39.36V | 39.51V | 39.66V | 39.82V | 39.97V |
Maximum Power Current | 10.84A | 10.90A | 10.96A | 11.02A | 11.05A | 11.11V |
Under Nominal Module Operating Temperature(NMOT), irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20℃, wind speed 1 m/s.
Temperature Characteristics
NMOT | 41±3°C | Temp Coeicient of ISC | +0.046%/°C |
Temp Coeicient of VOC | -0.25%/°C | Temp Coeicient of Pmax | -0.30%/°C |
Packing Configuration
Modules/Pallet | 37 Pieces | Modules/40'Container | 740 Pieces |
Packing Description | 20 Pallets, Total=(37+37)x10=740 Pieces | ||

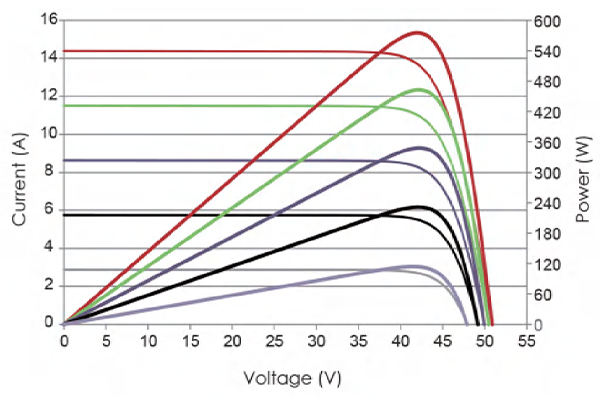

Characteristics
 |  |
LC-72M-182*182-N | LC-72M-182*182-N |
Maximum Rating
Output Tolerance | 0~+5W |
Operating Temperature | -40°C~+85°C |
Wind Load/Snow Load | 2400pa/5400pa |
Fuse Current | 25A |
Ideal for solar farms and industrial rooftops, the module’s high power output and large size make it suitable for high-capacity energy projects. It efficiently converts sunlight to electricity, supporting commercial entities in reducing energy costs and carbon footprints.
Perfect for residential properties with ample rooftop space, the module delivers consistent energy to power household appliances. Its durability and low light performance ensure reliable energy supply for daily residential use, aligning with homeowners’ renewable energy goals.
Suitable for remote areas without access to the main power grid, such as rural communities and outdoor facilities. The module’s robust design and efficient power generation make it a dependable choice for off-grid energy systems, providing stable electricity for essential needs.
Features a 3.2mm anti-reflection coating tempered glass front layer for enhanced light transmission and protection.
Constructed with a lightweight yet sturdy aluminum alloy frame that ensures easy installation and long-term durability.
Equipped with an IP68-rated junction box for superior water and dust resistance, safeguarding internal components.
Adopts MC4 compatible connectors for secure and convenient electrical connections, ensuring compatibility with standard solar systems.
Designed with 4mm² high-quality cables that support both horizontal and vertical installation, enhancing installation flexibility.
Incorporates a reliable fuse current design to prevent electrical overloads, ensuring safe operation throughout its lifespan.
N-Type TOPCon technology boosts the module’s power output and efficiency, enabling it to generate more electricity even in suboptimal conditions. It also enhances the module’s stability, reducing performance degradation over time compared to traditional technologies.
Yes, the module has passed strict salt spray corrosion tests, making it resistant to salt-induced damage. Its robust design and corrosion-resistant materials ensure reliable performance in coastal environments with high humidity and salt levels.
While the module is designed for relatively easy installation, professional installation is recommended. This ensures proper mounting, electrical connections, and compliance with safety standards, maximizing the module’s performance and lifespan.
The module’s low light performance is a key advantage, allowing it to generate significant power even on cloudy days or during early mornings and late afternoons. This feature ensures consistent energy production throughout the day, improving overall energy yield.
