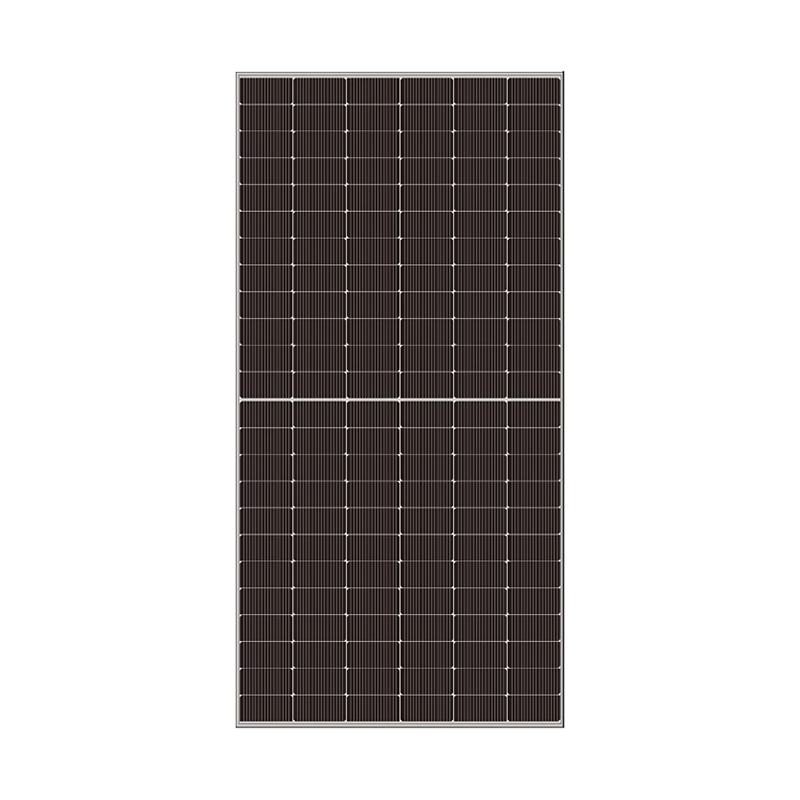

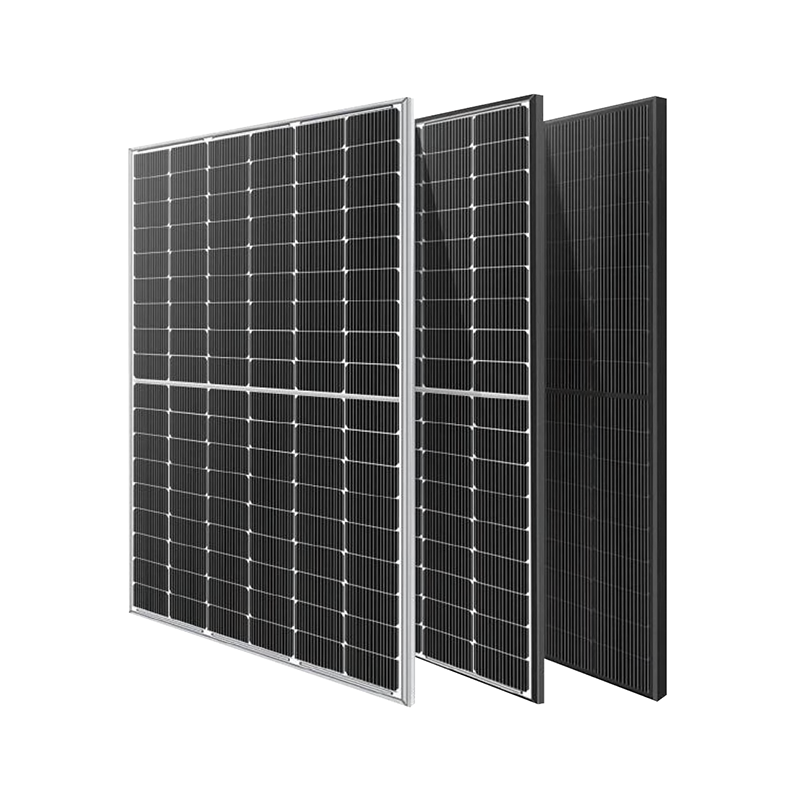

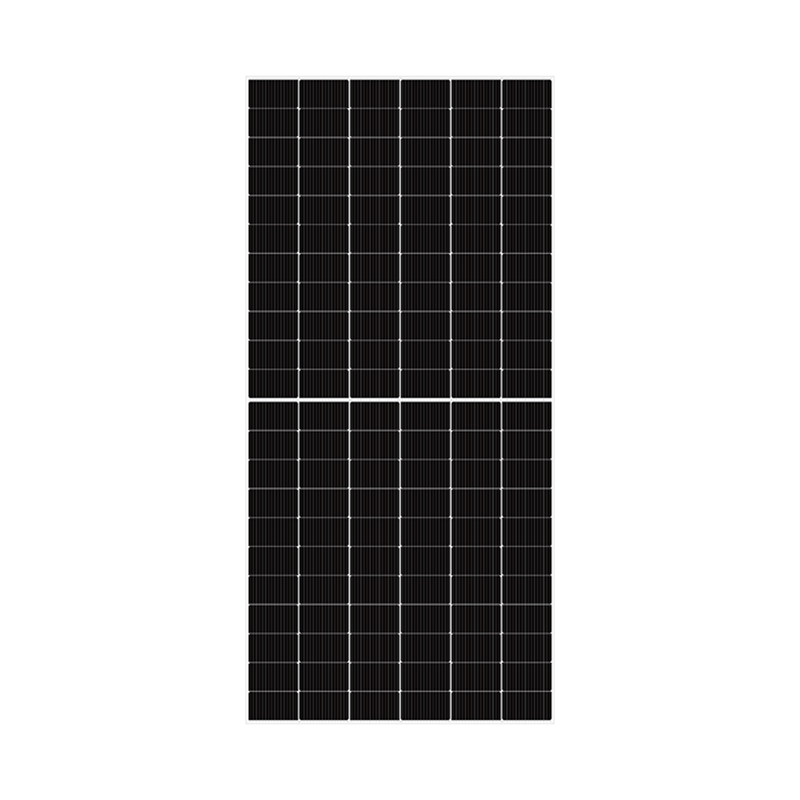

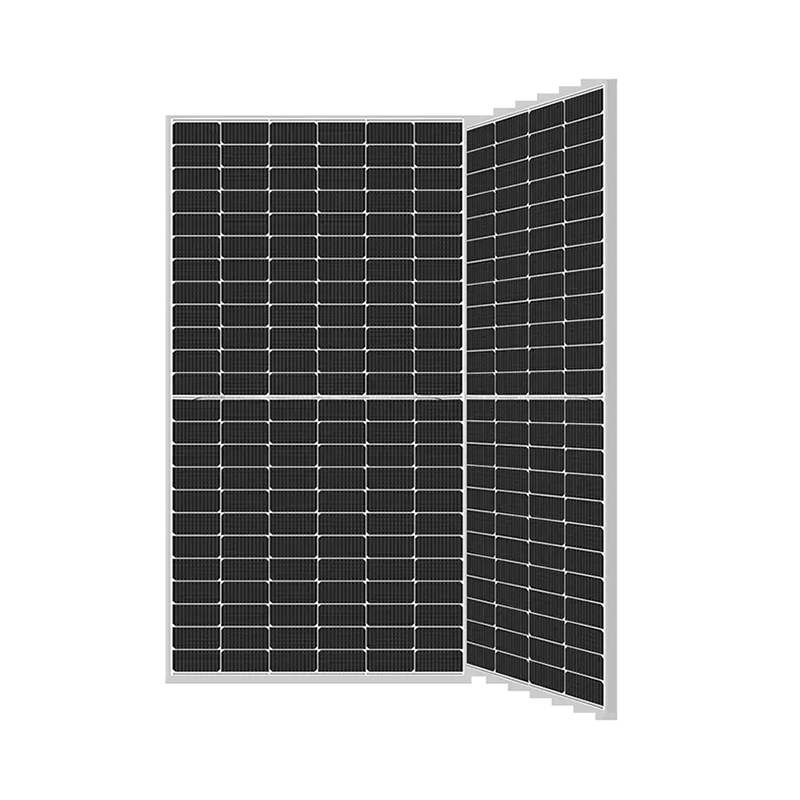

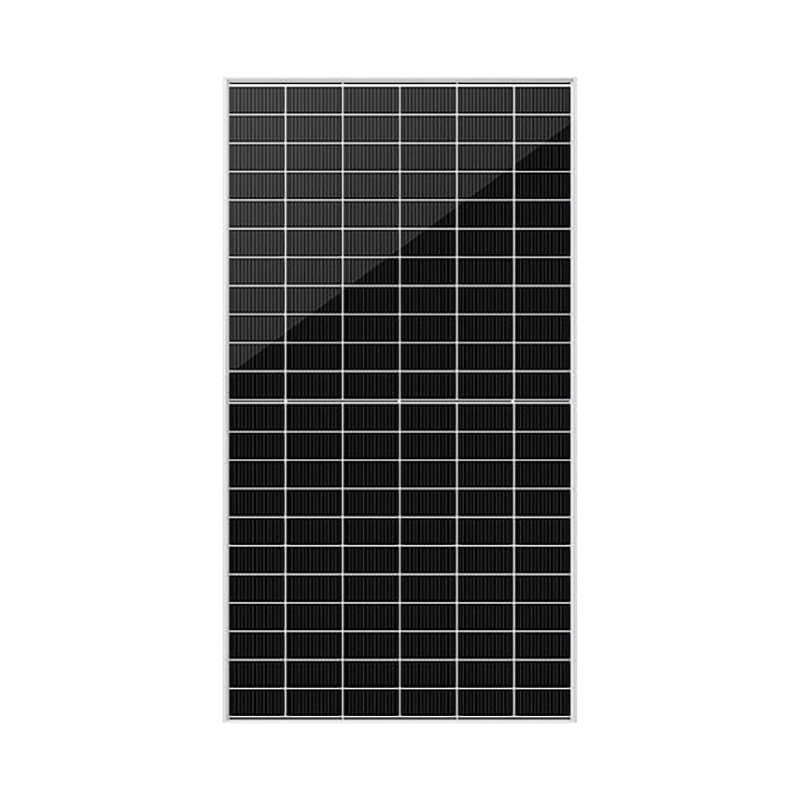

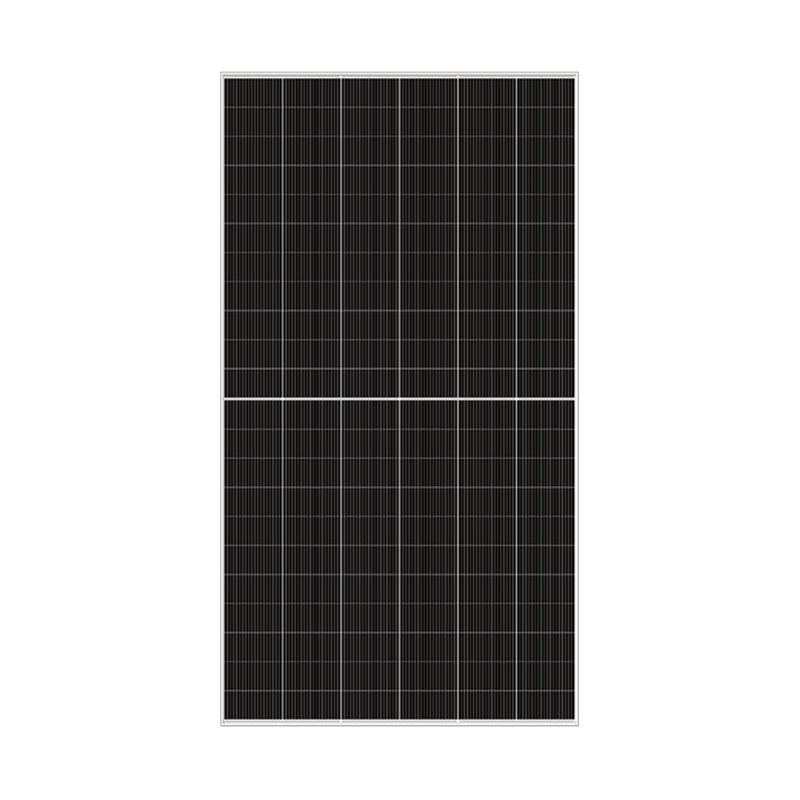

The Monocrystalline Silicon Mono 48 Cell module is a compact, high-efficiency solar solution built with N-Type TOPCon Dual Glass technology. Designed for versatility, it combines premium monocrystalline silicon cells with a dual-glass structure to deliver reliable power output while ensuring exceptional durability. Suitable for a wide range of applications, from residential rooftops to commercial installations, this module balances performance and practicality for modern energy needs.
The dual-glass construction, featuring high-quality tempered glass layers, provides superior protection against physical damage, moisture, and environmental contaminants. This design not only extends the module’s lifespan but also improves its resistance to corrosion, making it ideal for harsh operating conditions.
Powered by N-Type MBB Cell and advanced circuit design, the module achieves higher power output compared to conventional solar modules. Its excellent low light performance ensures consistent energy production in dim environments, while precise manufacturing guarantees stable efficiency over time.
Lightweight and compact, the module is easy to handle and install, reducing installation time and labor costs. It supports both horizontal and vertical installation, with MC4 compatible connectors that ensure seamless integration with existing solar systems, enhancing its adaptability to different project requirements.
Perfect for homes with limited rooftop space, the compact size of the Mono 48 Cell module allows for easy fitting on various roof types. It delivers efficient power to meet household energy demands, helping homeowners reduce electricity bills and embrace renewable energy.
Suitable for small to medium-sized commercial buildings, such as offices, retail stores, and warehouses. The module’s efficient power generation and easy installation make it a cost-effective choice for businesses looking to offset their energy consumption and reduce carbon emissions.
Ideal for temporary or mobile energy needs, such as construction sites, outdoor events, and RVs. Its lightweight design and durable construction make it easy to transport and set up, providing on-the-go power for tools, lighting, and other essential equipment.
Equipped with 3.2mm anti-reflection coating tempered glass on the front, ensuring high light transmission and scratch resistance.
Features a robust aluminum alloy frame that provides structural stability and supports easy mounting on various surfaces.
Incorporates an IP68-rated junction box to protect internal electrical components from water and dust, ensuring reliable operation in harsh environments.
Comes with 4mm² cables in customized lengths for horizontal and vertical installation, enhancing flexibility during setup.
Utilizes MC4 compatible connectors for secure and standardized electrical connections, simplifying integration with solar inverters and other system components.
Designed with a maximum system voltage that complies with international standards, ensuring safe and efficient energy transmission.

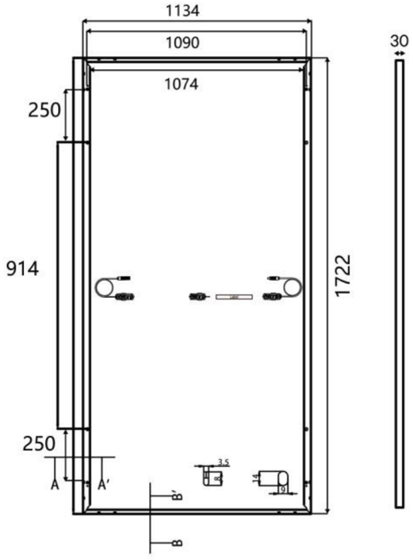

Mechanical Diagrams
 |  |  |

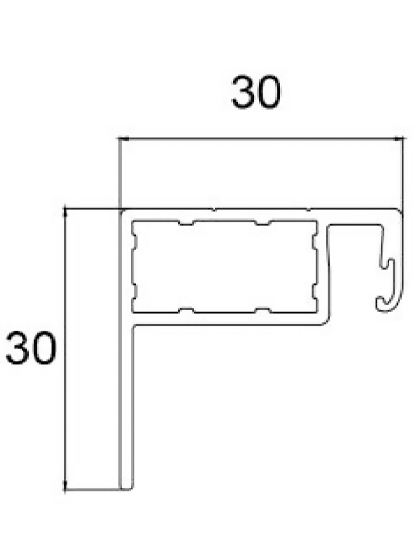

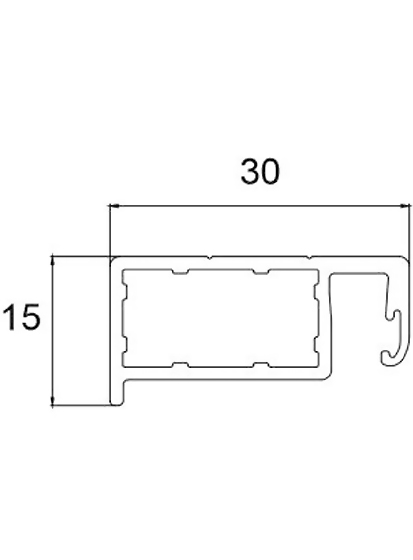

Mechanical Diagrams | Frame Cross Section A-A | Frame Cross Section B-B |
Specifications
Weight | 21kg |
Dimensions | 1722mm*1134mm*30mm |
Cell Dimensions | 182*182mm |
Cell Amount | 54*2 pcs |
Maximum System Voltage | 1500V |
Junction Box | IP68 |
Front Glass | 3.2mm, Anti-Reflection Coating High Transmission, Low Iron, Tempered Glass |
| Frame | Aluminum Alloy |
Cable | 4mm², N 1100mm/P 1100mm for Horizontal installation 4mm2, N 300mm/P 300mm for Vertical installation |
Connector | MC4 compatible |
Electrical Parameters At Stc
Power | 430W | 435W | 440W | 445W | 450W |
Open Circuit Voltage | 38.57V | 38.72V | 38.87V | 39.02V | 39.17V |
Short Circuit Current | 14.09A | 14.18A | 14.27A | 14.36A | 14.44A |
Maximun Power Voltage | 31.76V | 31.89V | 32.05V | 32.20V | 32.35V |
Maximum Power Current | 13.54A | 13.64A | 13.73A | 13.82A | 13.91A |
Module Eciency | 22.02% | 22.28% | 22.53% | 22.79% | 23.04% |
Under Standard Test Conditions(STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25℃.
Electrical Parameters At Nmot
Power | 324W | 327W | 331W | 335W | 339W |
Open Circuit Voltage | 36.63V | 36.78V | 36.93V | 37.08V | 37.23V |
Short Circuit Current | 11.36A | 11.38A | 11.45A | 11.52A | 11.58A |
Maximun Power Voltage | 29.65V | 29.78V | 29.93V | 30.08V | 30.24V |
Maximum Power Current | 10.93A | 10.98A | 11.06A | 11.14A | 11.21A |
Under Nominal Module Operating Temperature(NMOT), irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20℃, wind speed 1 m/s.

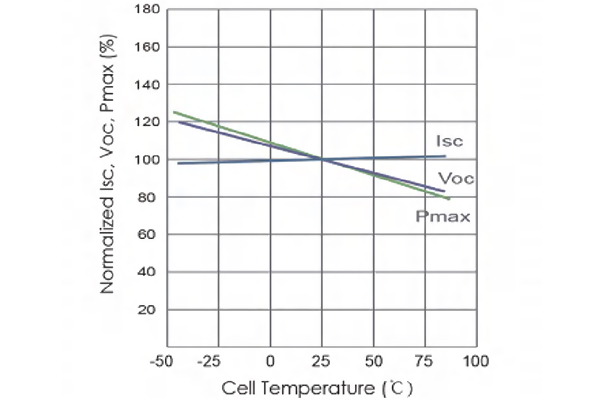

Temperature Characteristics
NMOT | 41±3°C | Temp Coeicient of ISC | +0.046%/°C |
Temp Coeicient of VOC | -0.25%/°C | Temp Coeicient of Pmax | -0.30%/°C |
Packing Configuration
Modules/Pallet | 37 Pieces | Modules/40'Container | 962 Pieces |
Packing Description | 26 Pallets, Total=(37+37)x13=962 Pieces | ||

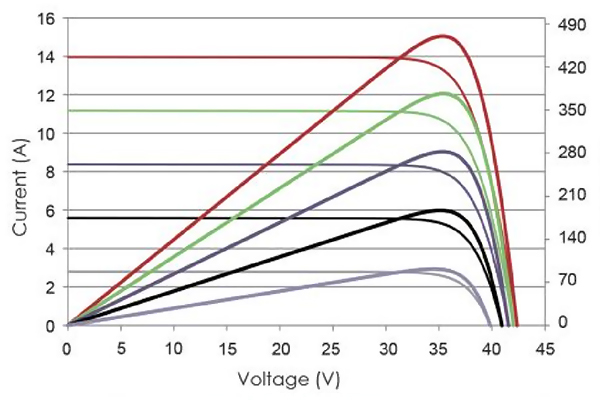

Characteristics
 |  |
LC-48M-182*182-ND | LC-48M-182*182-ND |
Maximum Rating
Output Tolerance | 0~+5W |
Operating Temperature | -40°C~+85°C |
Wind Load/Snow Load | 2400pa/5400pa |
Fuse Current | 25A |
The dual-glass design enhances the module’s durability by providing double-layer protection against impacts, moisture, and UV radiation. It also improves heat dissipation, reducing the module’s operating temperature and maintaining higher efficiency during hot weather.
Yes, the module has passed rigorous mechanical load tests, including wind load and snow load assessments. Its sturdy frame and robust construction enable it to withstand extreme weather conditions, ensuring stable performance even in regions with heavy snow or strong winds.
Absolutely, the module uses MC4 compatible connectors, which are standard in the solar industry. This ensures compatibility with most residential solar inverters, allowing for easy integration into existing or new residential solar systems.
With its high-quality materials and robust design, the module has a long expected lifespan. Supported by international product certifications, it maintains stable performance for many years, making it a reliable long-term investment for renewable energy projects.
